Install

DTaaS logo

🎉 Thank you for downloading Digital Twin as a Service.

This guide explains how to deploy the application for secure multi-user deployments.

❓ Prerequisites

✅ Docker Engine v27 or later

✅ Sufficient system resources (at least 2GB RAM per workspace instance)

✅ Port 80 and 443 are available on the host

✅ Valid TLS certificates

✅ Domain name pointing to the server

🗒️ Design

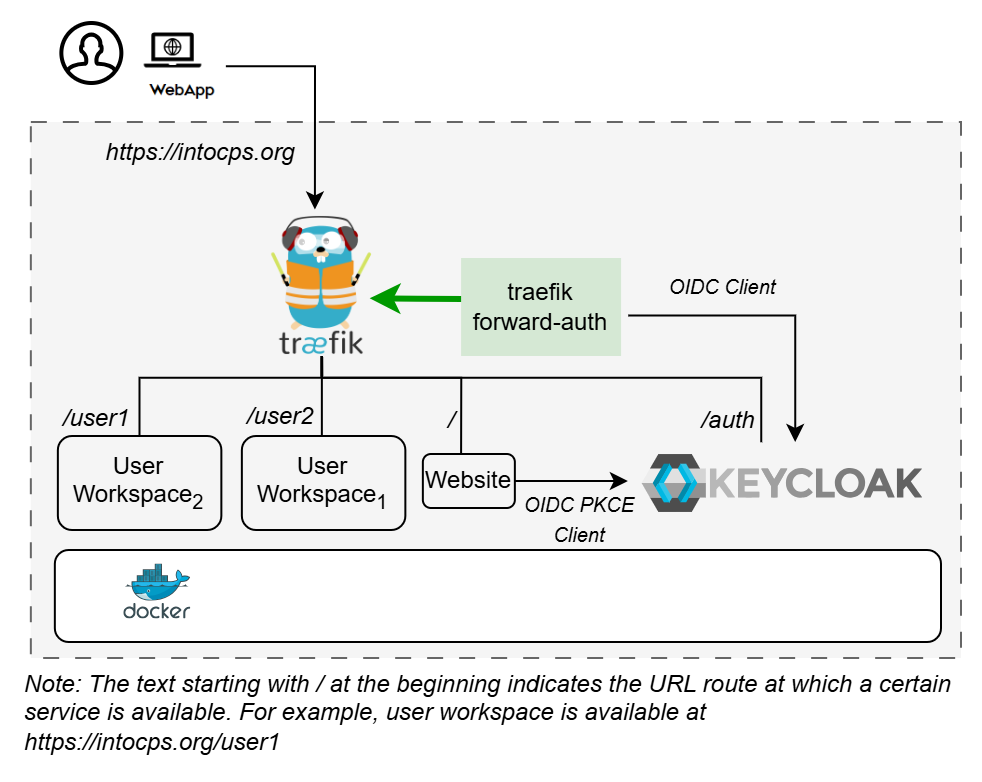

An illustration of the installation setup is shown here.

Workspace production installation using Keycloak

📁 User Directories

All the deployment options require user directories for storing workspace files. These need to be created for USERNAME1 and USERNAME2 set in .env file.

1
2
3
4
5
# create required files
cp -R files/template files/<USERNAME1>
cp -R files/template files/<USERNAME2>
# set file permissions for use inside the container
sudo chown -R 1000:100 files

⚙️ Configuration

Follow the pre-installation steps in configuration.md for creating valid configuration.

▶️ Start the application:

1
docker compose up -d

🌵 Temporary Issues

The following issues in application startup are expected behaviour. This problem will be resolved during post-installation.

👉 traefik-forward-auth service will be restarting at this stage. 👉 Visiting https://intocps.org shows HTTP ERROR 500.

Now complete the post-installation steps in configuration.md. Restart traefik-forward-auth

1
docker compose up -d --force-recreate traefik-forward-auth

The application will be accessible at https://intocps.org from web browser. Login using the user credentials set in Keycloak.

Stop the demo:

1
docker compose down

To stop and remove volumes:

1
docker compose down -v

🔧 Customization

Adding More Users

Create user account for USERNAME3 in Keycloak.

Create the user's workspace directory:

1
2
cp -r files/template files/<USERNAME3>
sudo chown -R 1000:100 files/<USERNAME3>

Add a new service in docker-compose.yml:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
  user3:
    image: intocps/workspace:main-967bc10
    restart: unless-stopped
    environment:
      - MAIN_USER=${USERNAME3:-user3}
    volumes:
      - "./files/common:/workspace/common"
      - "./files/${USERNAME3:-user3}:/workspace"
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.u3.rule=Host(`${SERVER_DNS:-localhost}`) && PathPrefix(`/${USERNAME3:-user3}`)"
      - "traefik.http.routers.u3.tls=true"
      - "traefik.http.routers.u3.middlewares=traefik-forward-auth"
    networks:
      - users

Add the desired USERNAME3 variable in .env:

1
2
3
4
5
6
# Username Configuration
# These usernames will be used as path prefixes for user workspaces
# Example: http://localhost/user1, http://localhost/user2
USERNAME1=user1
USERNAME2=user2
USERNAME3=user3 # <--- replace "user3" with your desired username

Add Forward Auth config for user3 in forward-auth-conf:

1
2
3
rule.user3_access.action=auth
rule.user3_access.rule=PathPrefix(`/user3`)
rule.user3_access.whitelist = user3@localhost

🐛 Troubleshooting

Certificate Issues

Problem: "NET::ERR_CERT_INVALID" in browser

Solutions:

  • Verify certificate files exist in ./certs/ directory
  • Check certificate file permissions
  • For self-signed certs, add security exception in browser

OAuth2 Issues

Problem: Redirect loop after OAuth2 login

Solutions:

  • Verify OAuth2 callback URL matches https://intocps.org/_oauth
  • Check SERVER_DNS environment variable is set correctly
  • Ensure COOKIE_DOMAIN matches the domain
  • Verify OAuth2 application is approved and active

Service Access Issues

Problem: Cannot access workspace after authentication

Solutions:

  • Check service health: docker compose ps
  • View logs: docker logs
  • Verify Traefik routes: docker compose logs traefik
  • Test OAuth2 service: docker compose logs traefik-forward-auth

Port Conflicts

Problem: Ports 80 or 443 already in use

Solutions:

  • Check for other services: sudo netstat -tlnp | grep -E ':(80|443)'
  • Stop conflicting services
  • Or modify port mappings in compose file (not recommended for production)
