🎉 Thank you for downloading Digital Twin as a Service.

This README provides a quick-start installation guide for a secure, multi-user DTaaS deployment that uses an external GitLab instance for OAuth 2.0 authorisation.

For a full configuration reference, see config.md.

Overview

This package deploys DTaaS with Traefik, OAuth forward-auth, and multiple user workspaces.

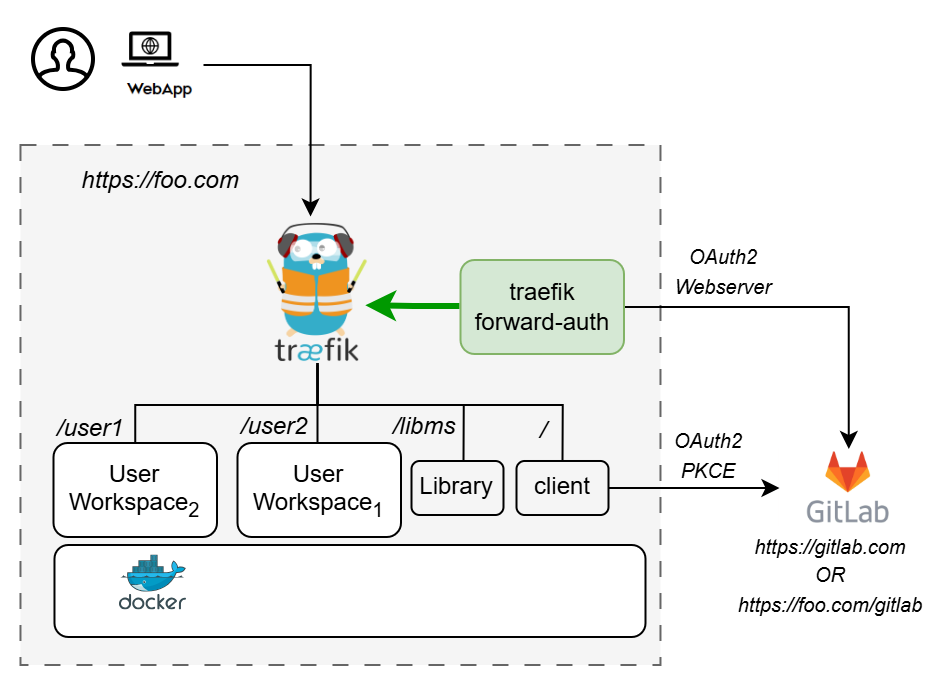

DTaaS on Server

The docker-compose.yml starts the following services:

Service Purpose
traefik Reverse proxy with TLS termination
client DTaaS React frontend
user1 / user2 JupyterLab user workspaces
libms Library management microservice
traefik-forward-auth OAuth 2.0 authorisation middleware

Prerequisites

Requirement Details
Docker Engine v28 or later with Compose plugin
Domain name Public DNS name or server IP
TLS certificates fullchain.pem and privkey.pem for your domain
OAuth provider External GitLab (gitlab.com or self-hosted GitLab)

Quick Start

1. Create Configuration Files

1
2
3
cp config/.env.example config/.env
cp config/conf.server.example config/conf.server
cp config/client.js.example config/client.js

Edit config/.env:

  • SERVER_DNS
  • USERNAME1
  • USERNAME2
  • OAUTH_URL
  • OAUTH_CLIENT_ID
  • OAUTH_CLIENT_SECRET
  • OAUTH_SECRET

Edit config/client.js:

  • REACT_APP_CLIENT_ID
  • REACT_APP_AUTH_AUTHORITY
  • REACT_APP_REDIRECT_URI
  • REACT_APP_LOGOUT_REDIRECT_URI

See config.md for full details.

2. Create User Workspace Directories

1
2
3
cp -R files/template files/<USERNAME1>
cp -R files/template files/<USERNAME2>
sudo chown -R 1000:100 files/*

3. Add TLS Certificates

1
2
cp /path/to/fullchain.pem certs/fullchain.pem
cp /path/to/privkey.pem certs/privkey.pem

If certificates are missing or invalid, Traefik runs with self-signed certificates.

4. Configure OAuth 2.0 Applications in GitLab 🦊

  1. Create user accounts (see GitLab docs). The usernames must match USERNAME1/USERNAME2 in config/.env.

  2. Register two OAuth 2.0 applications in GitLab (Admin Area → Applications):

  3. DTaaS Client Authorization — for the React SPA frontend. See client auth docs.

  4. DTaaS Server Authorization — for Traefik forward-auth backend. See server auth docs.

  5. Update configuration files (config/.env and config/client.js) with the generated OAuth 2.0 tokens:

  6. Set REACT_APP_CLIENT_ID and REACT_APP_AUTH_AUTHORITY in config/client.js.
  7. Set OAUTH_URL, OAUTH_CLIENT_ID, and OAUTH_CLIENT_SECRET in config/.env.

Update config/client.js and config/.env with generated credentials, then reload affected services:

5. Start Services

1
docker compose --env-file config/.env up -d

6. Verify

URL Expected result
https://<SERVER_DNS> DTaaS web interface
https://<SERVER_DNS>/user1 User 1 workspace after sign-in
https://<SERVER_DNS>/user2 User 2 workspace after sign-in
https://<SERVER_DNS>/lib Library service

Stop

1
docker compose --env-file config/.env down

Directory Layout

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
.
|- certs/                 # TLS certificates (fullchain.pem, privkey.pem)
|- config/
|  |- .env                # Docker Compose environment variables
|  |- conf.server         # Traefik forward-auth authorization rules
|  |- client.js           # DTaaS React client configuration
|  |- .env.example
|  |- conf.server.example
|  |- client.js.example
|  \- tls.yml            # Traefik TLS provider configuration
|- files/
|  |- common/             # Shared files across all workspaces
|  \- template/           # sample user workspace files
|- docker-compose.yml     # Service definitions
|- CONFIG.md              # Detailed configuration reference
\- README.md              # This file
