Setting up GitLab Runners with Docker on Windows for DTaaS

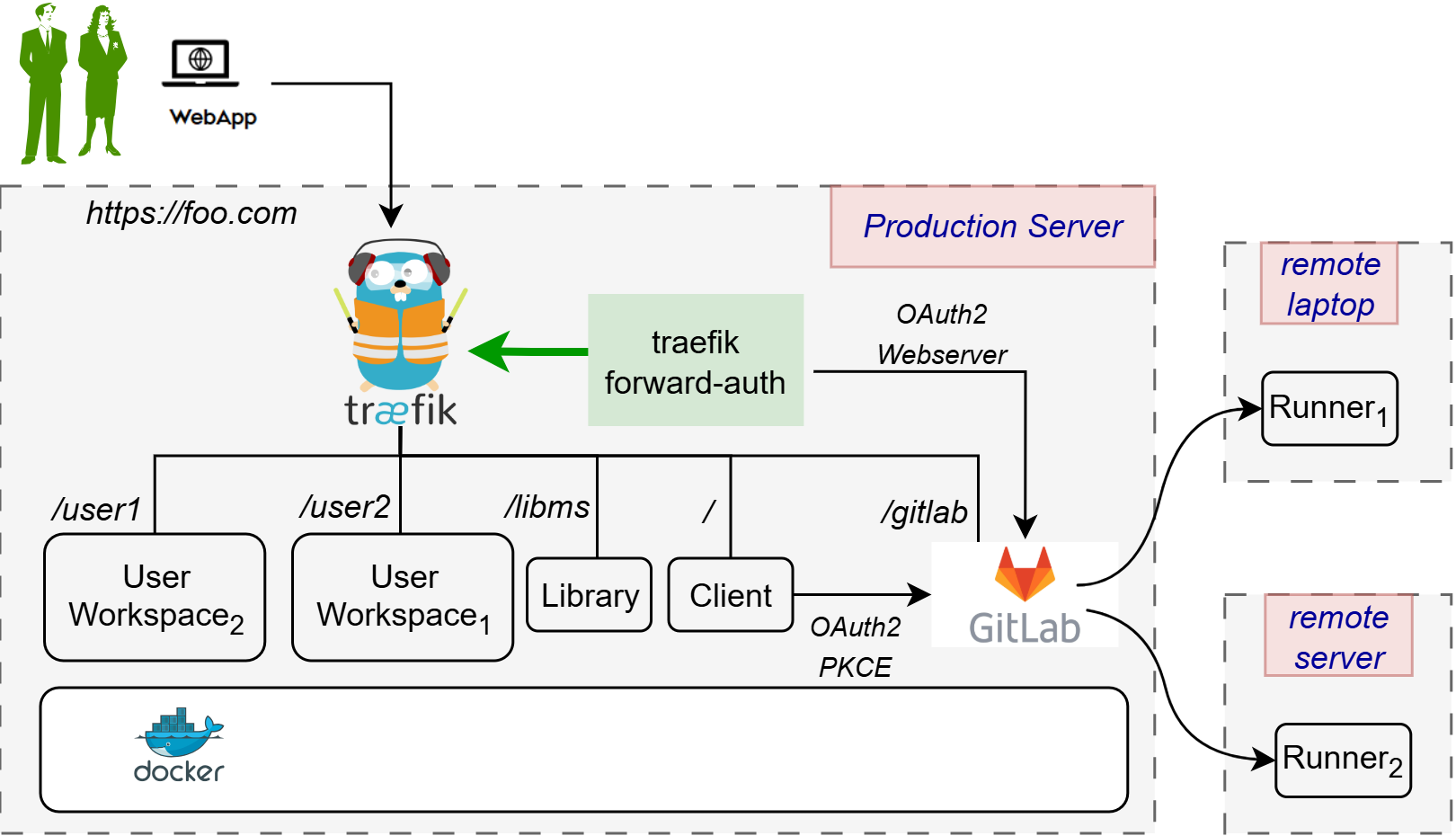

This guide documents how to properly set up and configure GitLab runners with Docker on Windows for the DTaaS platform. An illustration of the intended installation setup is shown below.

GitLab Runner Integration

There are two installation scenarios:

Step-by-Step Setup Process

1. Install GitLab Runner

Download and install GitLab Runner for Windows from GitLab's official download page.

1
2
3
4
5
6
7
8
# Navigate to your download directory
cd C:\path\to\download\folder

# Run the GitLab Runner
.\gitlab-runner.exe install

# Start the service
.\gitlab-runner.exe start

2. Getting a token

To obtain the GitLab token, first navigate to the project page (e.g. https://dtaas-digitaltwin.com/gitlab/dtaas/USERNAME), then do the following:

  1. settings -> CI/CD -> Runners
  2. Now press New Project Runner
  3. Add tag linux
  4. Leave the rest as is, and press Create Runner
  5. The token is now displayed. Save it.

The runner token is now available.

3. Register Your Runner for DTaaS

For the DTaaS project, register the runner using the specific GitLab instance URL and token:

1
2
3
4
5
6
7
8
# Register the runner for DTaaS
.\gitlab-runner.exe register --url "https://intocps.org/gitlab" --token ""

# When prompted, enter:
# - Name: [Your machine name or any preferred name]
# - Executor: docker
# - Default Docker image: ruby:2.7
# - Tags: linux

This configuration is designed for the DTaaS digital twins which require a Linux environment to run properly. The pipelines use shell scripts with commands like chmod +x, which need a Linux-compatible environment.

4. Configure Your config.toml

The most important part is properly configuring the config.toml file, which is typically located at C:\Users\YourUsername\.gitlab-runner\config.toml or in the directory where the gitlab-runner executable was downloaded and run.

DTaaS Configuration for Windows Hosts

Here is the recommended configuration for running DTaaS Digital Twins on Windows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
concurrent = 1
check_interval = 0
connection_max_age = "15m0s"
shutdown_timeout = 0

[session_server]
  session_timeout = 1800

[[runners]]
  name = "Some name"
  url = "https://dtaas-digitaltwin.com/gitlab"
  id = 3
  token = "YOUR_RUNNER_TOKEN"
  token_obtained_at = 2025-03-17T19:50:25Z
  token_expires_at = 0001-01-01T00:00:00Z
  executor = "docker"
  [runners.custom_build_dir]
    enabled = false
  [runners.cache]
    MaxUploadedArchiveSize = 0
    [runners.cache.s3]
    [runners.cache.gcs]
    [runners.cache.azure]
  [runners.feature_flags]
    FF_NETWORK_PER_BUILD = false
  [runners.docker]
    tls_verify = false
    image = "ruby:2.7"
    privileged = false
    disable_entrypoint_overwrite = false
    oom_kill_disable = false
    disable_cache = false
    volumes = ["/cache"]
    shm_size = 0
    network_mtu = 0
  tags = ["linux"]

6. Restart the Runner

After making these configuration changes, restart the runner:

1
2
.\gitlab-runner.exe stop
.\gitlab-runner.exe start

Verifying Your Setup

Run a verification check to ensure the runner is properly configured:

1
.\gitlab-runner.exe verify

A successful verification will show something like:

1
Verifying runner... is valid        runner=YourRunnerToken

Understanding the DTaaS Project Setup

The DTaaS project uses a specific structure for running digital twins:

  1. Digital twins are contained in the digital_twins directory
  2. Each digital twin has lifecycle scripts (create, execute, terminate, clean)
  3. The GitLab CI/CD pipeline triggers these scripts based on user actions
  4. The scripts need a Linux environment to execute properly

Common Errors

When running GitLab CI/CD pipelines on Windows with Docker, the following errors may be encountered:

1
2
ERROR: Failed to remove network for build
ERROR: Job failed: invalid volume specification: "c:\\cache"

These errors are typically caused by:

  1. Incorrect Docker executor configuration
  2. Windows-style path specification not being compatible with Docker
  3. Mismatch between the runner's executor type and the pipeline requirements

Conclusion

By following this guide, it should be possible to properly set up GitLab runners with Docker on Windows for the DTaaS project and avoid the common configuration errors. The most crucial aspects are using the Docker (Linux) executor and properly formatting the volume paths.

Remember that for the DTaaS digital twins, using the standard Docker executor is required, even when running on a Windows host, since the scripts are designed to run in a Linux environment.
