Logger Microservice

The logger microservice receives workflow interaction events from the DTaaS client and stores them as JSON Lines: one JSON object per line, one line per event. The format suits command-line tools such as jq and data analysis libraries alike.

How Events Reach the Logger

The website records page navigation, button and tab clicks, form changes and notifications. When remote logging is on, the browser sends each event to the logger with the Beacon API, which does not wait for a reply, so logging never slows the website down. The logger checks each event and appends it to its log file.

flowchart LR
    A[DTaaS website<br>in the browser] -- "POST /logger<br>one event" --> B[Logger<br>microservice]
    B -- "appends a line" --> C[(workflow-logs.jsonl)]
    A -. "local activity log" .-> D[(Browser storage)]

The local activity log is separate. It stays in the browser and is shown on the Logs page.

Enabling Remote Logging

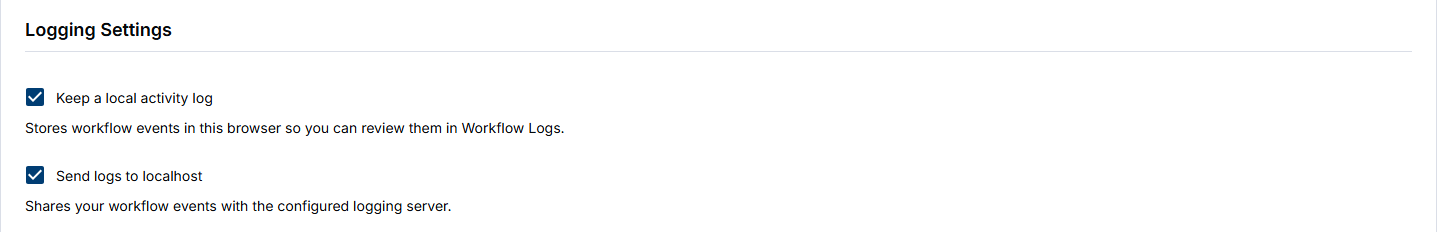

Remote logging is off by default. When the installation has a logger, the Logging Settings section on the Settings tab of the Account page shows a Send logs to ... checkbox, followed by the logger's host name. Select it and click Save Settings.

Logging Settings with remote logging enabled

The two checkboxes are independent. Keep a local activity log stores the events in the browser, and Send logs to ... sends them to the logger. Keep remote logging on only with the consent of the person whose activity is being recorded.

What a Log File Contains

The following lines were recorded while a user opened the Digital Twins Page from Automation, switched to the Execute tab, opened and closed the execution history of Hello World, and then went to the Logs page. Download them as workflow-logs-sample.jsonl.

1
2
3
4
5
6
7
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:34.686Z","event":"navigation","page":"/account","element":"page","label":"/account","context":{}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:36.233Z","event":"navigation","page":"/automation","page_transition":{"src":"/account","target":"/automation"},"element":"page","label":"/automation","context":{}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:40.379Z","event":"navigation","page":"/preview/digitaltwins","page_transition":{"src":"/automation","target":"/preview/digitaltwins"},"element":"page","label":"/preview/digitaltwins","context":{}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:44.317Z","event":"click","page":"/preview/digitaltwins","element":"tab","label":"Execute","context":{"dt":{"tab":"execute"}}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:48.369Z","event":"click","page":"/preview/digitaltwins","element":"button","label":"History","context":{"dt":{"name":"hello-world","button":"history","executionCount":0}}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:50.435Z","event":"click","page":"/preview/digitaltwins","element":"button","label":"Close","context":{"dt":{"name":"hello-world","button":"close-history"}}}
{"sessionId":"70327d05-9dbc-454a-a358-6b8914fb37b9","userHash":"0a041b9462caa4a31bac3567e0b6e6fd9100787db2ab433d96f6d178cabfce90","timestamp":"2026-10-10T20:29:52.481Z","event":"navigation","page":"/insights/log","page_transition":{"src":"/preview/digitaltwins","target":"/insights/log"},"element":"page","label":"/insights/log","context":{}}

Each line has the same fields:

Field Meaning in the sample
sessionId A random identifier for one browser session. All seven events share it
userHash The SHA-256 hash of the username, computed in the browser. The logger never receives the username itself
timestamp When the event happened, in UTC
event navigation for a page change and click for a tab or button. The other types are change, notification and dismiss
page The page on which the event happened
page_transition On navigation events only: the page the user came from (src) and went to (target)
element and label What was used, such as the button labelled History
context Details that depend on the page. On the Digital Twins Page, dt names the digital twin and the action

The hash is the same every time a user signs in, so events can still be grouped by user across sessions. It is a pseudonym, not anonymity.

Analysing a Log File

The logger writes to logs/workflow-logs.jsonl unless it is configured otherwise. These jq commands work on that file and on the sample.

Count the events of each type:

1
2
jq -s -c 'group_by(.event) | map({event: .[0].event, count: length})' \
  workflow-logs.jsonl

1
[{"event":"click","count":3},{"event":"navigation","count":4}]

Follow the path a user took through the website:

1
2
3
jq -r 'select(.page_transition)
  | "\(.timestamp) \(.page_transition.src) -> \(.page_transition.target)"' \
  workflow-logs.jsonl

1
2
3
2026-10-10T20:29:36.233Z /account -> /automation
2026-10-10T20:29:40.379Z /automation -> /preview/digitaltwins
2026-10-10T20:29:52.481Z /preview/digitaltwins -> /insights/log

List what was done to digital twins:

1
2
jq -c 'select(.context.dt) | {timestamp, label, dt: .context.dt}' \
  workflow-logs.jsonl

1
2
3
{"timestamp":"2026-10-10T20:29:44.317Z","label":"Execute","dt":{"tab":"execute"}}
{"timestamp":"2026-10-10T20:29:48.369Z","label":"History","dt":{"name":"hello-world","button":"history","executionCount":0}}
{"timestamp":"2026-10-10T20:29:50.435Z","label":"Close","dt":{"name":"hello-world","button":"close-history"}}

When the active file reaches its size limit, the logger renames it and starts a new one, keeping a fixed number of old files. To analyse everything, pass all of them to jq.

Configuring the Website

The client sends events to the URL configured in LOGGER_URL. Include the /logger route prefix, for example:

1
LOGGER_URL: "https://example.com/logger";

For non-Docker local development, use the logger's direct port:

1
LOGGER_URL: "http://localhost:4003/logger";

The API is specified in servers/logger/API.md. Installing and configuring the logger is covered in the administrator guide.
